Product
| Series | RGX connector |
| Category | Wire-to-Wire Connectors |
| Type | I/O connector, Drawer connector |
| Feature | High electric current capacity |
Specification
| Pitch | 1.25mm |
| Current rating | Signal line/1.0A(AWG#26) Power line/15A(AWG#14) |
| Voltage rating | Signal line/50V Power line/250V |
| PC board mounting direction | Wire to wire |
Product Description

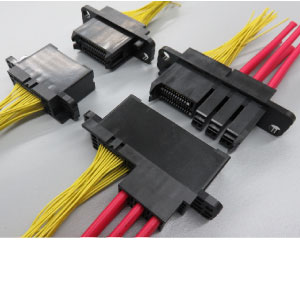

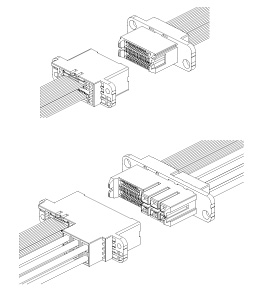

With an in-unit connection, the RGX series is offered as both a signal type and a hybrid type drawer connector with combined signal and power lines.Misalignment is absorbed between units with exceptional durability against insertion and withdrawal forces.Improvements in the contact structure allows for enhanced contact reliability.
