5150
Cable Tester & Automation Controller
The Cirris 5150 provides capable high voltage cable testing and has the flexibility to integrate with automated equipment. The unit supports common PLC-machine communication protocols, digital IO, custom software applications, and high voltage testing options.
The Cirris 5150 Cable Tester & Automation Controller is designed for precision and efficiency. With Cirris High Speed Test Points, it delivers rapid low voltage testing and reliable high voltage tests. Advanced Test Points offer extensive measurement capabilities, making it suitable for the most demanding applications. The 5150 supports multiple automation communication protocols, including ProfiNET, EtherNet/IP, and Modbus, and can be expanded with optional Digital I/O modules for enhanced control.
Internal sensors monitor temperature and humidity, ensuring optimal performance in various environments. The RFID reader provides secure user identification, while Cirris AST Software allows for customized test processes and seamless integration with automation equipment. Easy serviceability features, such as LED indicators and modular design, simplify maintenance. Safety interlocks provide robust protection during testing.
Featuring an integrated Windows PC, it ensures seamless connectivity with network data sharing, printers, and peripherals. The flexible display supports both touchscreen and external monitors.
Application Control
Advanced communication and digital IO access for machine and testing integrations. Customizable user interface makes it an all-in-one application controller.
Enterprise Communication Protocols
Easily configured for machine/ PLC communication protocols such as ProfiNET, EtherNet/ lP, TwinCAT, OPC-UA, MOTT, and Modbus.
Complex Tests & Measurements
Advanced Test Points provide the maximum range of test flexibility for the most demanding test applications. Easily integrate power supplies, meters, and high power HV.
Fast Testing
High Speed Test Points you can increase your throughput for automation applications generating more testing efficiency.
Cirris AST Software
Customize your test processes and operator access. Test multiple parts at the same time and deal with both pass and fail conditions in one test.
Easy Service & Upgrade Mobility

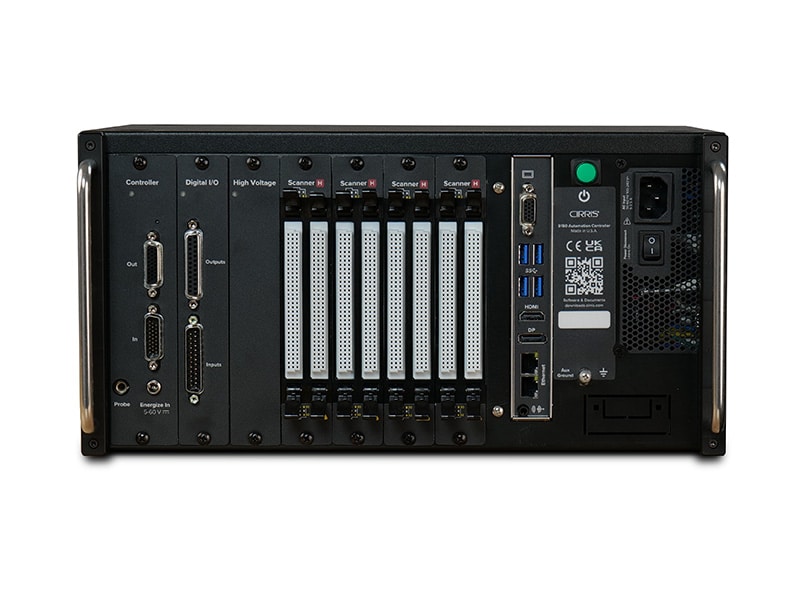

Each test point and functional card has an LED indicator that allows for quick error diagnosis and field service replacement. Easily add or change modules.
Test Points
64 to 768 points in 64 point increments
Low Voltage Test
2 Wire
- Voltage: 3.3 V standard
- Current: 0.1 μA to 10 mA
- Resistance: 0.1 Ω to 10 MΩ ± 2% ± 0.1 Ω
4 Wire
- Voltage: 3.3 V standard
- Current: 0.1 μA to 2 A
- Resistance: 0.001 Ω to 10 MΩ ±2% ±0.001
Component Tests
- Diodes: 0 to 6 VDC standard (0-30V with Advanced Instructions)
- Resistors: 0.1 Ω to 10 MΩ ±2%
- Capacitors: 10 pF to 5000 μF ±10% ±50 pF
- Twisted Pairs: Verify proper pairing in twisted pair cables
Max Points Per Net
Unlimited
High Voltage Test
Insulation Resistance Test
- Voltage: 10 to 1500VDC ± 5% ± 5 V
- Resistance: 5 MΩ to 3 GΩ ±10% (Optional 10 GΩ ±10%)
Dielectric Withstand Test
- Voltage: 10 to 1500 VDC ± 5% ± 5 V or 10 to 1070 VAC ± 5% ± 5 V
- Current Limit: (DC) 10 μA to 2.5 mA, (AC) 10 μA to 2.5mA (RMS)
- Max Capacitance Per Net: 30 nF @ 1500 VDC; 6.3 nF @ 1000 VAC
- HV Energy Limit: 35 mJ
- HV Charge Limit: 45μC
Digital Input/Output
- Sourcing (PNP) – 16 inputs, 16 outputs, 12 V – 24 V
- Sinking (NPN) – 20 configurable Inputs/Outputs, 8 Outputs, 3.3 V – 24 V
Test Point 64-Point Modules
Choice of one test point module type per system.
- High Speed Test Points 64pt: Single relay per test point for high voltage switching. Uses solid state circuitry to maximize test speed during low voltage testing.
- Advanced Test Points 64pt: Two relays per test point, allowing external meter integration, floating selected nets to isolate high voltage and capacitance measurements, optionally allows stimulus up to 30 VDC 10mA during low voltage testing.
- Flex Test Points 32pt: Dual-function module enables testing and energizing up to 60VDC/2A or 40 VAC/1.4A RMS on each point. Supports external meter integration and can be combined in systems with Advanced Test Point modules.
- Low Voltage Only Test Points 64pt: For complex functionality without High Voltage. The system can be field upgraded with HV scanner replacement modules and adding an HV module.
Test Point Interface
96 pos. Female VME Eurocard connector-32 pos. loaded
User Interface
- Built-in PC with Windows 11
- Display: 10.1” Full-Color Graphic Touch Screen display
Power
115 / 230 V 50/60 Hz
Dimensions
(width x height x depth)
15.0” x 7.7″ x 12.9″ (38.1 cm x 19.5 cm x 32.8 cm)
Note: Dimensions are approximate. Contact factory for exact product dimensions.
Weight
25 lbs (11.34 kg)
5150 Base Unit (C5150-BU)
5150 Base with Easy-Wire software and Controller Module (No HV or test points)
5150 Expansion Box (C5150-EX)
5150 Expansion with Controller Module and Expansion Cable
System Modules
CM-HV15: 1500DC / 1070 VAC High Voltage Module
CM-HV15-10G: 1500DC / 1070 VAC High Voltage Module, Supports IR measurements up to 10 GΩ
CM-DIOSR: Sourcing Digital I/O Module
CM-DIOSK: Sinking Digital I/O Module
5150 Base Unit with AST (C5150-AU)
5150 Base with AST software and Controller Module (No HV or test points)
Optional Fieldbus Communication Modules Compatible with the AST Software
- FB-1PB: Profibus Fieldbus Module – Version 1*
- FB-2PB: Profibus Fieldbus Module – Version 2
- FB-1PN: Profinet Fieldbus Module – Version 1*
- FB-2PN: Profinet Fieldbus Module – Version 2
- FB-1EI: Ethernet IP Fieldbus Module – Version 1*
- FB-2EI: Ethernet IP Fieldbus Module – Version 2
- FB-1EC: Ethercat Fieldbus Module – Version 1*
- FB-2EC: Ethercat Fieldbus Module – Version 2
* Old version
Easy-Wire Scripting Option (SCPT-EW-CUS)
- Provides increased flexibility for unique test processes.
- Make highly customized reports or cable tags.
- Extra control for external devices such as lamps, hold-down clamps, markers, etc.
- Increased flexibility for testing switches, gas fuses, zener diodes, bi-color diodes, etc.
- Verify color and lighting of LEDs.
- Display operator selections to customize the test process.
- Hipot different nets at different voltages.
OPC UA Server for Easy-Wire Software (OPC-EW)
Transmit tester status and test information in real time to other information systems or equipment.
Cirris Tester Access API for Easy-Wire Software (CTA-EW)
Alternatively control the tester with third party applications written in LabVIEW, Python, C, C#, C++ and Delphi.
5150 Performance Check Kit
(PCHK-XHW-3G) 3GΩ IR Capability
(PCHK-XHW-10G) 10GΩ IR Capability
Verify calibration with the performance check kit. The certificate of calibration included with a performance check kit is valid for two years.
